تنظیم ضخامت خط در اتوکد

در این مطلب به بررسی چگونگی تعیین ضخامت خط در اتوکد می پردازیم. برای دیدن این مطلب لطفا روی لینک ادامه مطلب کلیک کنید.

Lineweight


در اتوکد چند روش برای تعیین ضخامت خط هنگام چاپ وجود دارد. فرض کنید در نقشه فوق می خواهیم ضخامت دیوار بیرونی را تغییر دهیم. اولین روش تغییر ضخامت خط در Layer می باشد.

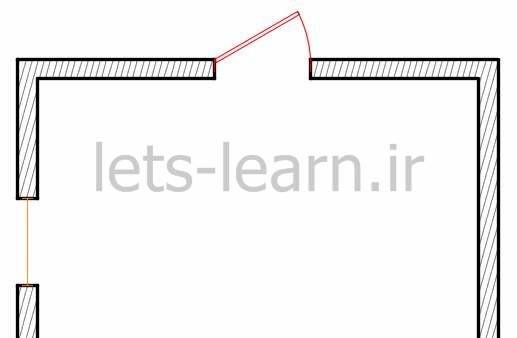

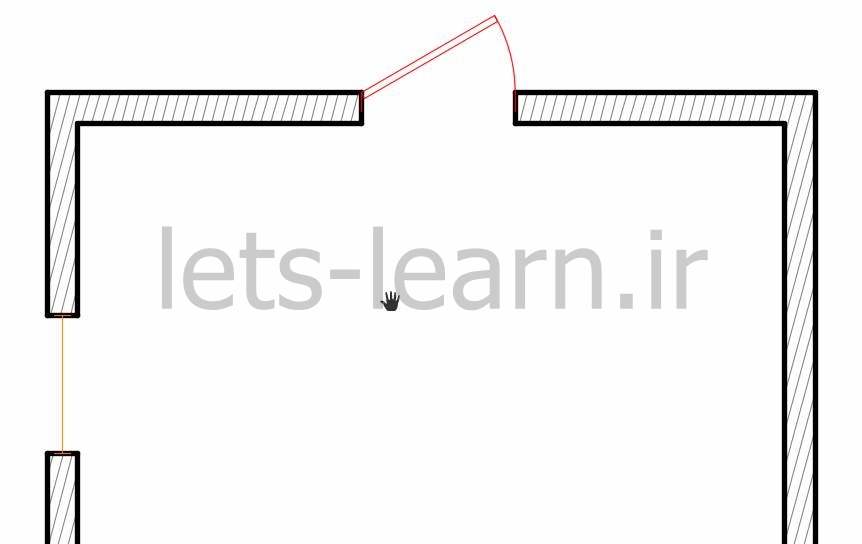

نتیجه را در شکل زیر می بینید.



روش دوم استفاده از Plot Style  می باشد که می تواند از نوع وابسته به رنگ CTB و یا نوع تعریفی STB باشد.

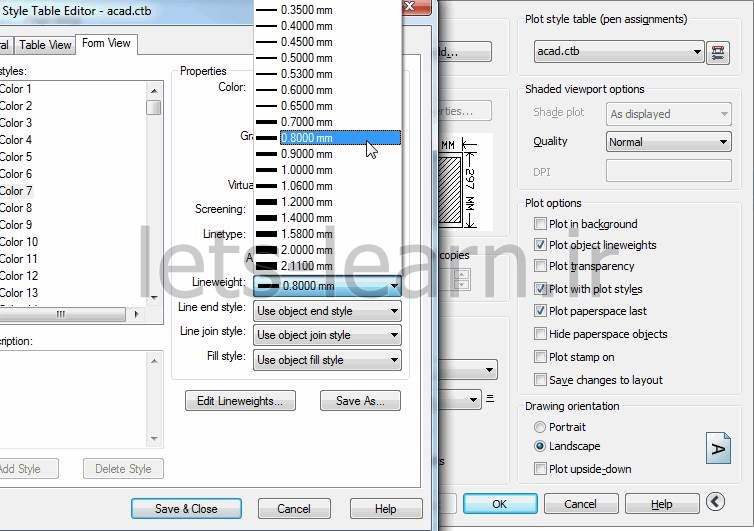

در این مثال رنگ شماره هفت ( سفید) را که رنگ Layer مورد نظر است با ضخامت موردنظر تعیین می کنیم.



مجدد نتیجه چاپ را در شکل زیر می بینید.

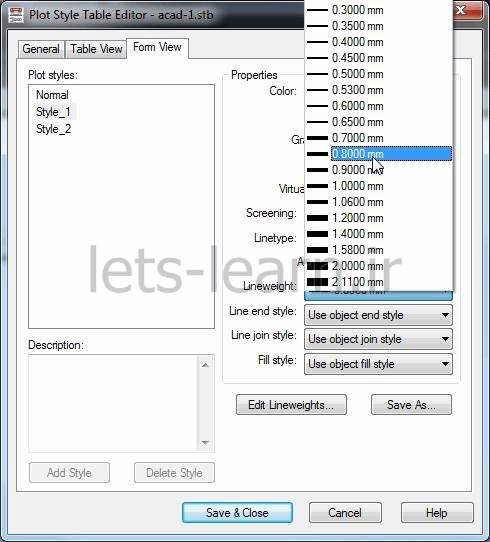

و در نهایت برای استفاده از STB می بایستی ابتدا style مورد نظر را تعریف کرد (شکل زیر)

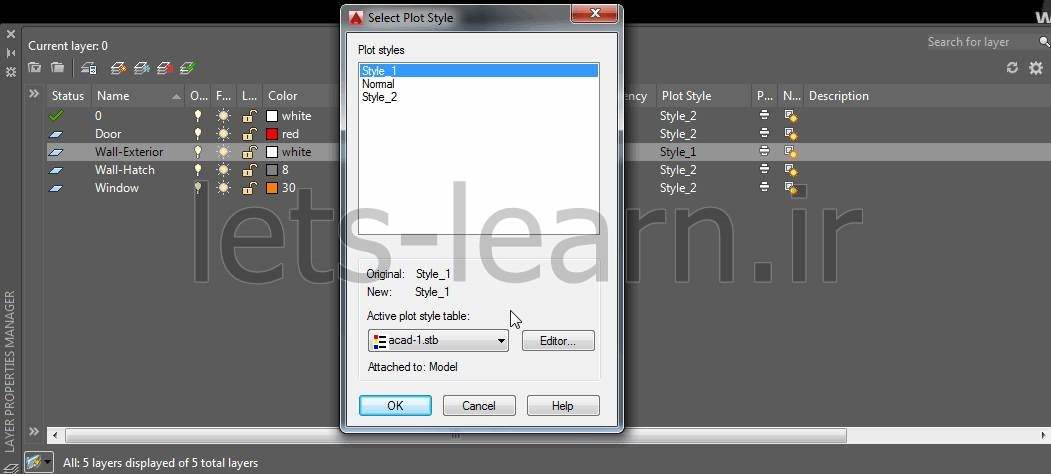

و سپس Layer مورد نظر را مانند شکل زیر تنظیم کرد.

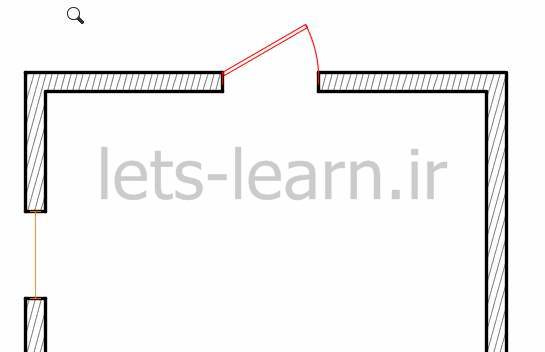

نتیجه مشابه نتایج قبلی است.
